Pizza Oven Installation Guide

Prepare the base

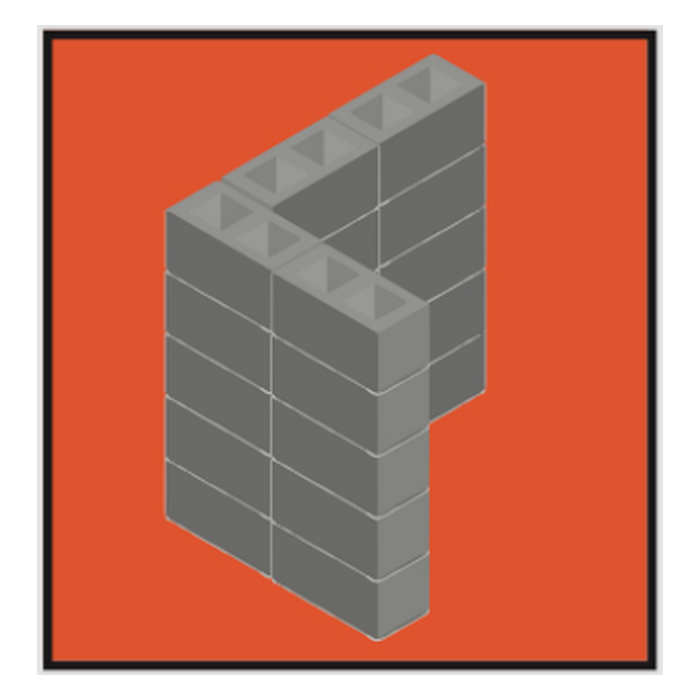

Build a level supporting platform

Prepare a strong, level and stable platform capable of supporting the oven’s weight. The original guide illustrates a concrete-block platform, but the final materials, engineering and dimensions should suit the selected oven and installation site.

Prepare for lifting

Attach suitable lifting equipment

The original guide refers to attaching heavy-duty chains or nylon lifting straps through the lifting eyelets located at the oven’s corners.

Use only equipment rated for the oven’s weight and suitable for the lifting method. Arrange an appropriately rated hoist, forklift, crane or other lifting solution operated by suitably experienced people.

Position the oven

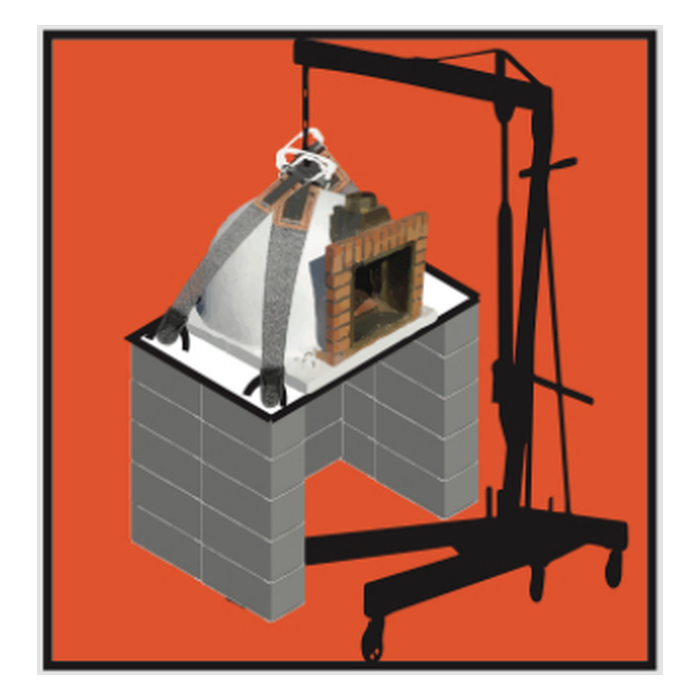

Lower the oven onto the prepared base

Position the oven directly over the prepared platform and lower it slowly under controlled conditions. Keep the oven stable and aligned throughout the movement.

Confirm that the oven is fully supported, level and correctly positioned before removing the lifting equipment.

Complete the installation

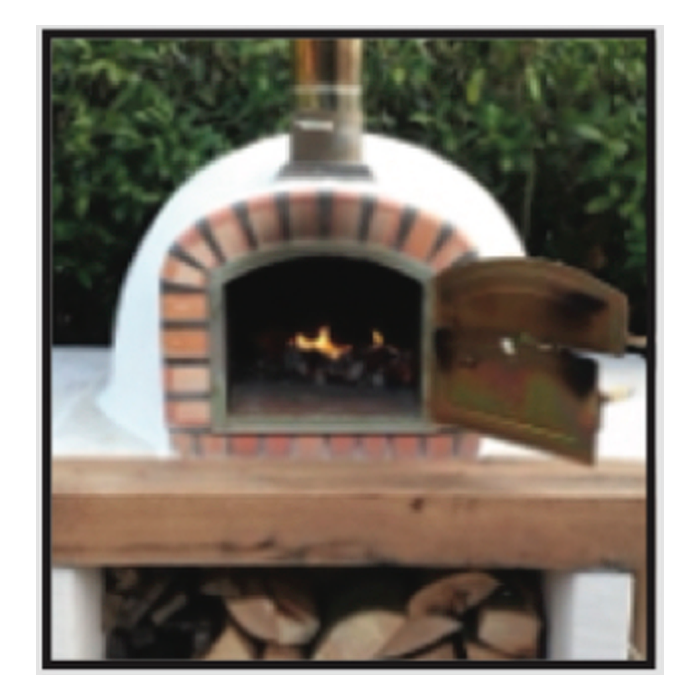

Finish the base and surrounding area

Once the oven is securely positioned, complete the supporting base and exterior finish according to the planned design.

Depending on the installation, the base may remain exposed or be finished with render, stone, tile or another suitable material.
